►Nutcracker Syndrome: A Case Report of Renal Vein Compression between the Aorta and Vertebra

Obayda M. Nafaa¹, Shifaa Mustafa², Alaa Hmeedan³, Eman Jamal Shawahna⁴, Abed Saleh Hassouna⁵, Laith B. Nassar⁵, Diya Asad⁶, Layth Al-Karaja^6*

¹Jenin-Government Hospital, Jenin, Palestine.

²Pediatric Department, Specialized Arab Hospital, Nablus, Palestine.

³Internal Medicine Department, An-Najah National University, Nablus, Palestine.

⁴Faculty of Medicine, An-Najah National University, Nablus, Palestine.

⁵Rafidia Surgical Hospital, Nablus, Palestine.

⁶Faculty of Medicine, Al-Quds University, Jerusalem, Palestine.

Table 1. Complete Blood Count

Table 2. Urine Analysis

Table 3. Serum Chemistry

Later on, the patient continued to complain of flank pain and gross hematuria, so that a renal Computed Tomography scan with and without intravenous contrast was performed, which showed that the left kidney was hypertrophied, measuring about 13 cm in its bipolar length. Otherwise, normal in shape and position with no definite lesions or hydronephrosis, normal excretion, the right kidney is atrophic, with no hydronephrosis. The left renal vein is compressed between the aorta and vertebral body with dilation proximal to the stenosis. Figure 1

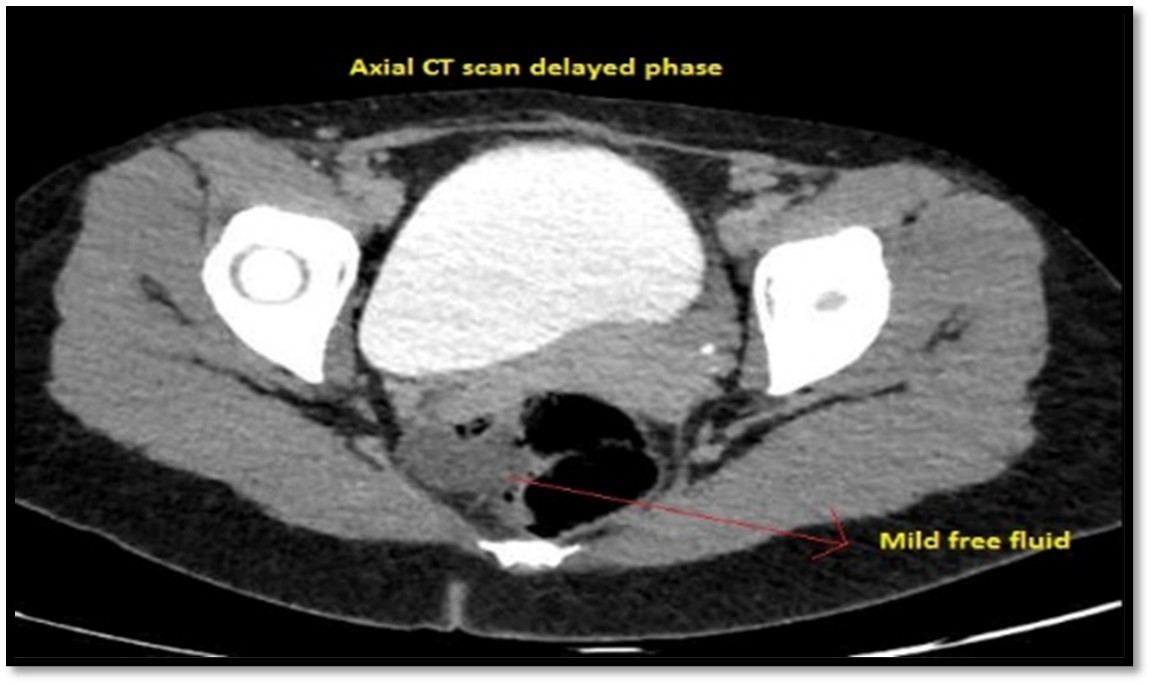

Figure 1, Part A; Axial CT scan, delayed phase: mild free fluid.

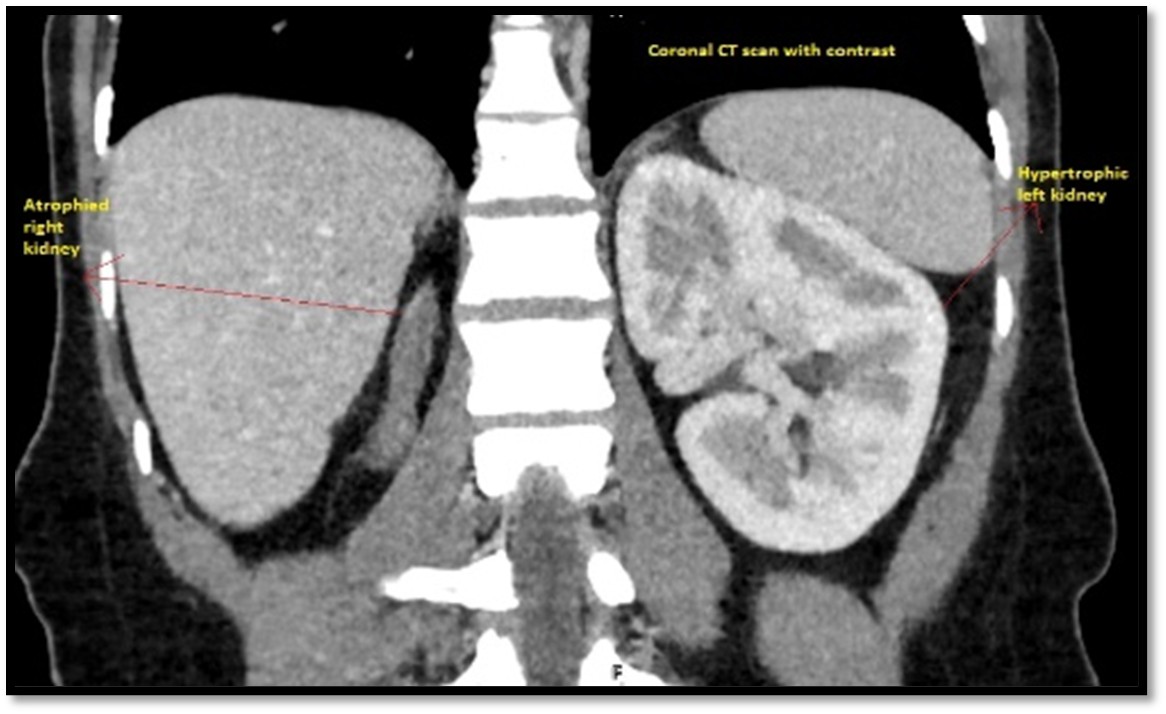

Figure 1, Part B; Coronal CT scan without contrast: atrophied right kidney & hypertrophied left kidney.

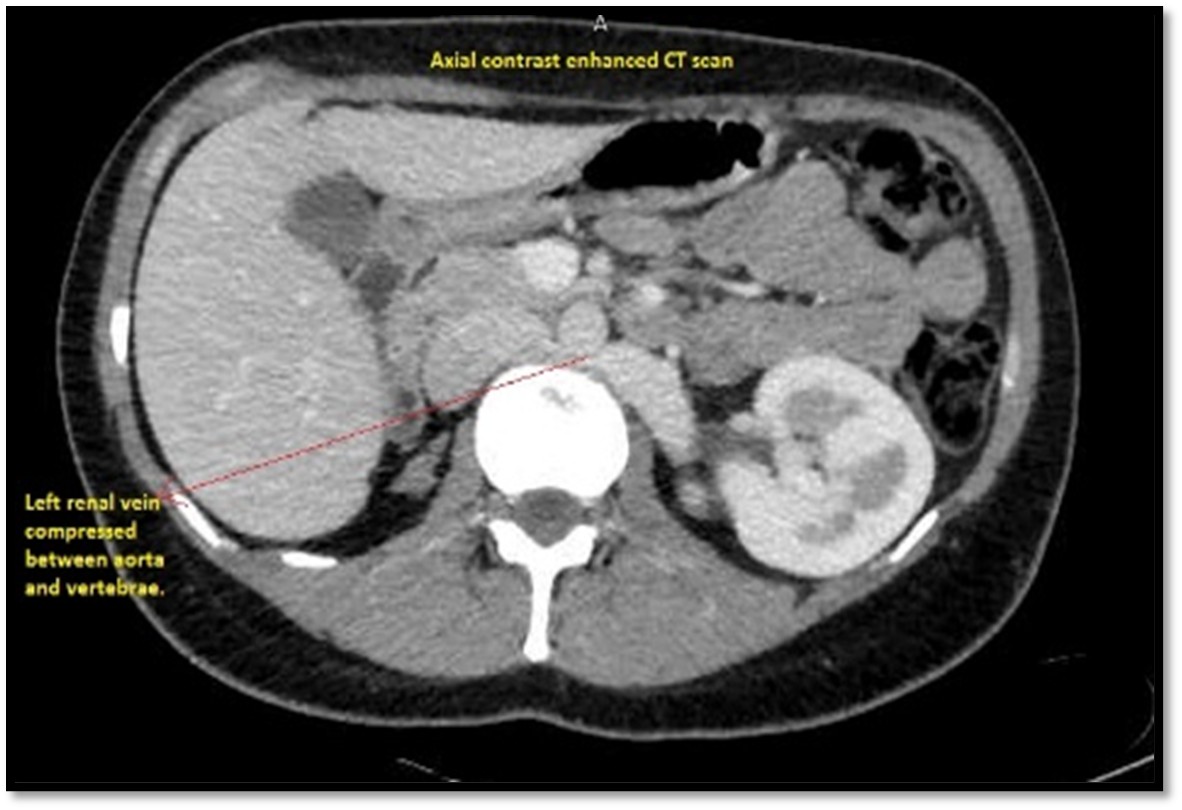

Figure 1, Part C; Axial CT scan: left renal vein compressed between aorta and vertebra.

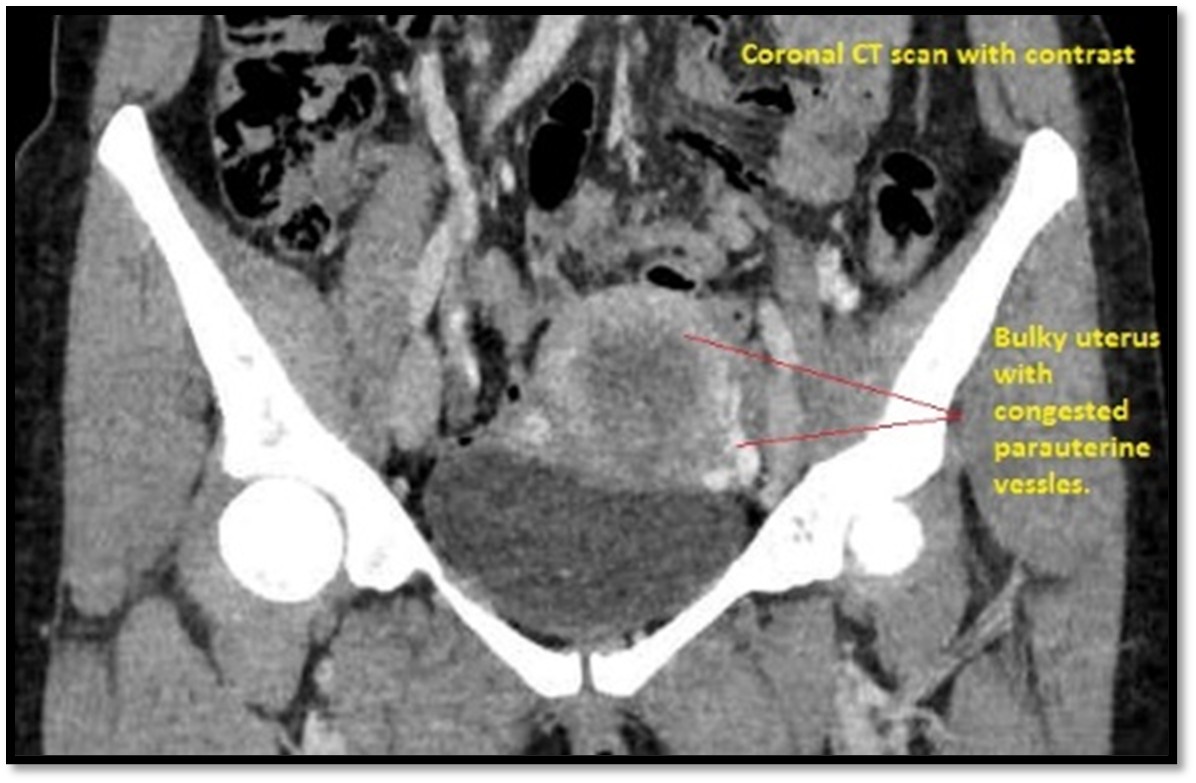

Figure 1, Part D; Coronal CT with contrast: bulky uterus with congested para-uterine arteries.

The treatment plan for the patient was discussed with the vascular surgery team for renal vein stenting, or bypass, and possible renal transplantation if other measures had failed, taking into consideration the fact that our patient has a single-functioning kidney, further complicating the management decision.

Discussion

Posterior Nutcracker Syndrome is a rare yet potentially serious condition. Posterior nutcracker syndrome occurs when the left renal vein becomes compressed between the aorta and the superior mesenteric artery. This compression leads to venous congestion and hypertension in the left kidney, ultimately posing a risk of kidney damage. The estimated prevalence of this condition in the general population ranges from 0.1% to 3.0%.[8]

The exact pathogenesis of retroaortic left renal vein (LSRV) compression syndrome remains incompletely understood. It is believed to arise from congenital anatomical variations in the relationship between the aorta and the LSRV. Typically, the LSRV courses anteriorly to the aorta. However, in patients with retroaortic LSRV compression syndrome, the LSRV takes a posterior route behind the aorta. This abnormal anatomical configuration results in compression of the LSRV between the aorta and the vertebral column. [9,10]

Clinical presentation varies based on the degree of compression. Patients may exhibit symptoms such as abdominal pain, flank pain, hematuria, and proteinuria. In severe cases, renal insufficiency or even renal failure can ensue. [11,12]

Diagnosis relies on clinical findings and imaging studies. Duplex ultrasound allows visualization of the LSRV and assessment for compression. Magnetic resonance imaging (MRI) and computed tomography (CT) are additional modalities used to confirm the diagnosis.[13]

The prognosis for patients with nutcracker syndrome is not well confirmed, but it is generally favorable with endovascular intervention for anterior nutcracker syndrome, and a left renal vein transposition in open surgery for posterior nutcracker syndrome, as most individuals experience significant symptom improvement following these two interventions, according to the type of the syndrome. [14,15]

Case Reports and Considerations in Retroaortic LSRV Compression Syndrome: In the medical literature, several case reports shed light on retroaortic left renal vein (LSRV) compression syndrome.

A 5-year-old boy presented with a 2-year history of intermittent hematuria, worsening to daily episodes in the preceding 6 months, especially following physical exertion. Abdominal and pelvic CT imaging revealed retroaortic compression of the left renal vein by the aorta, consistent with posterior nutcracker syndrome (PNS).[16]

Another case report of a 62-year-old Caucasian male who presented to a radiology department for chronic hepatitis B-related liver disease follow-up and complained of mild scrotal pain. Ultrasound revealed compression of the left retro-aortic renal vein within the aorto-vertebral space, attributed to an osteophyte.[17]

These case reports underscore the importance of considering retroaortic LSRV compression syndrome in patients presenting with unexplained flank pain, hematuria, proteinuria, or scrotal pain. Early recognition and timely intervention are crucial to prevent serious complications.

In the current case, the patient presents with a unique twist: posterior nutcracker syndrome and a solitary functioning kidney. This poses a challenge for treatment planning, as any intervention carries heightened risks compared to a typical posterior nutcracker syndrome scenario.

A report presents two cases of posterior nutcracker syndrome (PNS) successfully treated with a novel self-expanding venous stent, representing the first reported use of this device for complete endovascular PNS management. While clinically indistinguishable from anterior nutcracker syndrome (NS), subtle technical differences exist, necessitating indirect assessment of compression when intravascular ultrasound is unavailable. Although the renocaval gradient applicability remains unclear for PNS, their medium-term follow-up demonstrates comparable safety and efficacy of endovascular treatment for both PNS and NS, suggesting this approach is a viable and effective option for PNS.[18]

In another case of posterior nutcracker syndrome, left renal vein (LRV) anterior transposition proved a safe and effective technique, offering a tension-free repair without prosthetic material and eliminating potential thromboembolic risks associated with incomplete LRV detachment. While this approach necessitated clamping of the common iliac veins and inferior vena cava, introducing risks of clamp injury and bleeding, the overall outcome supports its consideration as a viable treatment option for PNS.[19]

In the context of this patient, a multidisciplinary approach is needed to plan the management of the patient, as crafting an optimal treatment plan necessitates individualization. Each treatment option must be meticulously evaluated, weighing its associated risks and benefits before arriving at a decision.

Compared to previously documented cases, the present situation stands out due to the patient's singular functioning kidney. This uniqueness amplifies the complexity of treatment planning, as any intervention inherently carries heightened risks of mortality and morbidity when contrasted with a typical posterior nutcracker syndrome scenario.

Indeed, the current case diverges from the earlier literature reviews. The patient's sole functioning kidney further complicates the treatment landscape, demanding thoughtful consideration and tailored management strategies.

Conclusion

In conclusion, we presented a rare case of nutcracker syndrome (NCS) in which the left renal vein was compressed between the abdominal aorta and an adjacent vertebral body. Despite its rarity, this case underscores the importance of considering atypical anatomical variations in the diagnosis and management of NCS. Awareness of such variations is crucial for accurate diagnosis and appropriate management of patients presenting with symptoms suggestive of NCS. Further studies are warranted to better understand the clinical significance and optimal management of this rare variant of NCS.

Data Availability

This published article comprises all data generated or analyzed in the context of this case.

Ethical Consideration

Our institution does not require ethical approval to report individual cases or case series.

Consent to Participate

Written and oral informed consent was given by the patient.

Consent for Publication

Written informed consent was obtained from the patient for their anonymized information to be published in this article.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

Funding Statement

This study received no funding.
